PVC doors
Windows and doors made from the latest generation of GEALAN profile systems not only look attractive, the sophisticated profile geometries have also been perfected right down to the last detail to satisfy all technical requirements. From heat and sound insulation to anti-burglary protection and ventilation, windows and doors made from GEALAN vinyl profiles are state of the art.
Resistant
Flexible
Individual

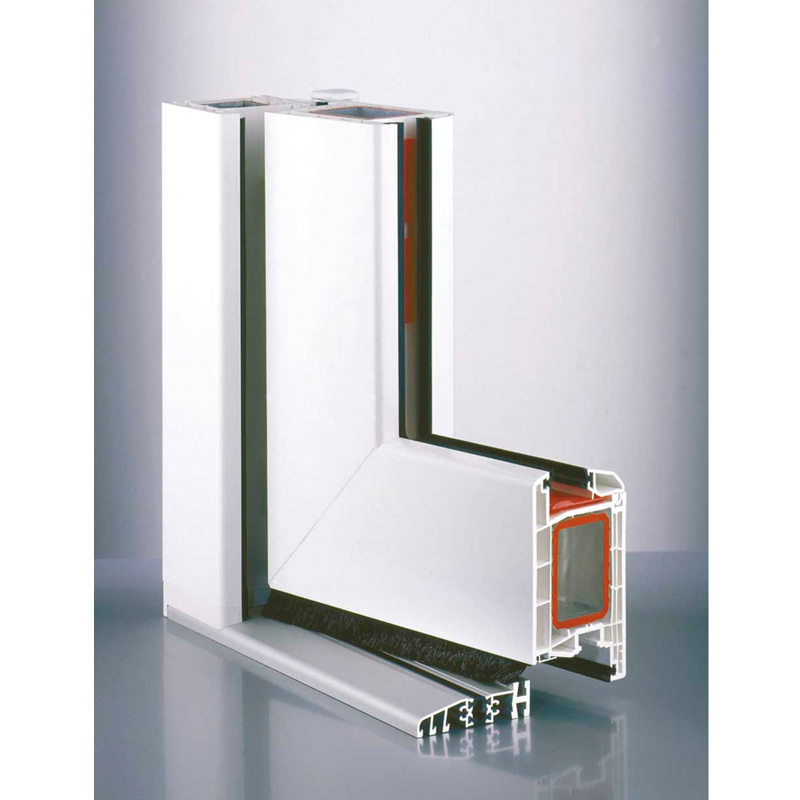

DOORS S8000
The entry door is the creative core of each façade, representing the business card of the house. Doors with Gealan S 8000 IQ profile system are elements of architectural design and they decisively influence the appearance of the façade by size, shape and distribution. The fashionably rounding and the oblique geometry of the profile emphasize the classic line and provide a modern and attractive appearance.
In the case of PVC entry doors, the stability, the resistance to torsion and the durability of the corners, plays an important role. Thus, thick steel reinforcements and joints by welding the corners are used for doors of Gealan S8000 IQ system, which contributes decisively to increasing the service life of your entry door.
- made with PVC profiles Gealan S8000 IQ
- outstanding stability thanks to reinforcements of at least 2 mm thick and the construction depth of 74 mm
- exterior wall thickness of PVC profiles ≥ 2.8mm;
- high thermal insulation thanks to the geometry with 4 chambers
- resistance to rain Class 7A according to EN 1220
- up to 46 mm glass with STV® for thermal insulation (Ug between 0,5 and 1,1 W/m2K) and increased acoustic insulation
- the geometry and the easy to clean outer surface make the maintenance easy
- frame heat transfer coefficient Uf = 1,5 W/m2K
- door heat transfer coefficient Uw between 1,2 and 1,5 W/m2K (according to the glazing)
- Maco lock adapted to requirements (multipoint locking with anti-theft bolts or hooks)
- Hoppe Tokyo handle, Simonswerk hinges 120 Kg
- available in multiple acryl color and wooden decoration versions
- the most flexible solution in terms of available options

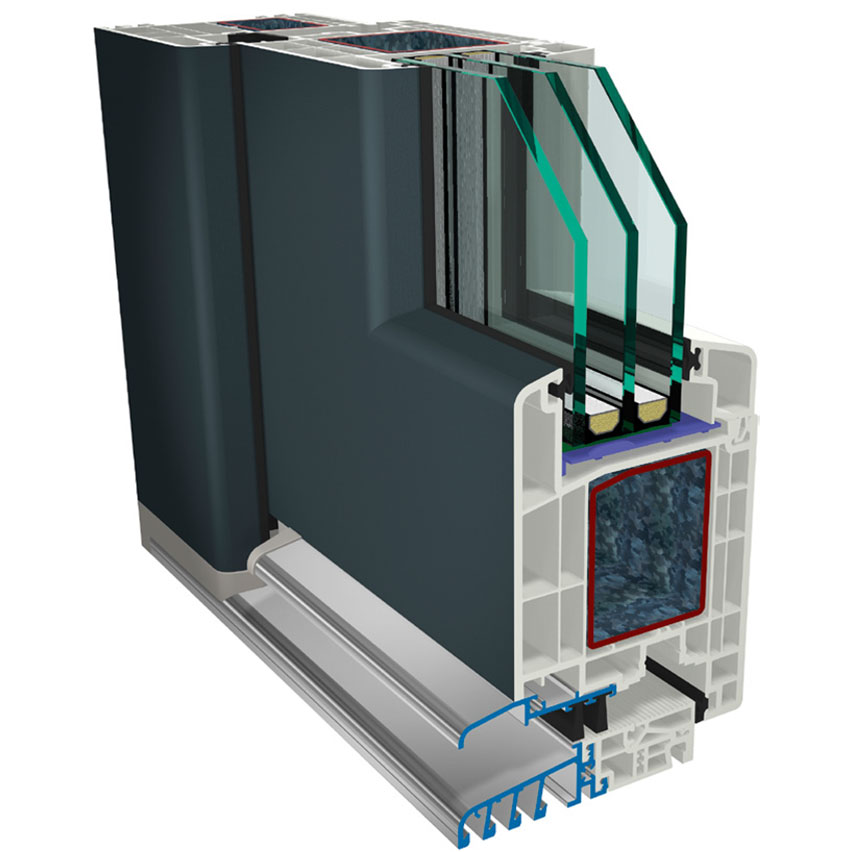

DOORS S9000
Entry doors are the business card of the house and provide the entry space, charm and aesthetics. Through door with the new Gealan S 9000 system for entry doors, we offer a suitable option for all preferences. Due to the large color variety of foil coatings, you have the possibility to match the new entry door with the overall appearance of the façade.
With doors made with Gealan S 9000 profiles you will get a modern and advanced system, which is equally suitable for new buildings and for those in renovation. In this way Performance S9000 is moving into a new platform for the construction of windows, entry doors and tilt and slide doors in GEALAN’s products program.
- made with Gealan S9000 IQ PVC profiles, construction depth 83mm
- very good static thanks to the large room designed for reinforcement, steel reinforcements
- stiffening through weldable corners
- exterior wall thickness of PVC profiles ≥ 2.8mm;
- excellent thermal insulation to the modern geometry with 5 chambers
- suitable for taking over three sheets of glass with thicknesses of up to 52 mm (with STV® up to 54 mm)
- Maco lock adapted to requirements (multipoint locking with anti-theft bolts or hooks)
- Hoppe Tokyo handle, Simonswerk hinges 120 Kg
- design of flexible colors with numerous decor foils or aluminum plating
- drip edge for optimal protection against torrential rain
- accessible threshold system, with excellent thermal insulation through thermal separation
