Residential Doors
Front and interior doors with thresholds for accessible living

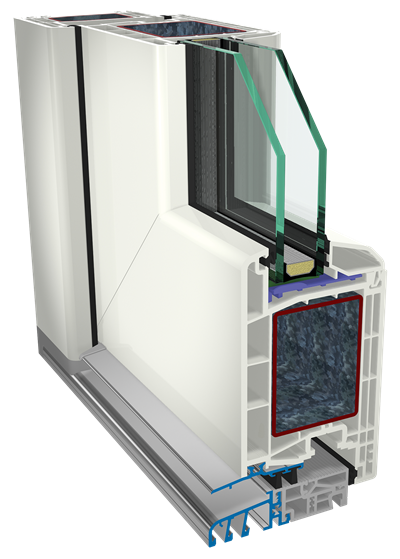

Large steel stiffening elements
To achieve the required static properties, GEALAN has arranged the partition bars in the front door from the S 8000 IQ system to allow the insertion of the largest possible stiffening elements. This specific arrangement of partition bars combined with an installation depth of 74 mm enables the use of a steel with 30% higher flexural rigidity. The stiffening elements are pre-milled for faster assembly. The threshold supports already tried and tested in other GEALAN systems also provide an interlocking connection between the front door frame and threshold in the S 8000 IQ profile. The wide range of accessories allows for the construction of all common front door variants. Front doors from the S 8000 IQ system can be manufactured to open inwards or outwards. The front door profile is available in numerous acrylcolor colours and (wood grain) decor foils.
Resistant
made with PVC profiles Gealan S8000 IQ
- outstanding stability thanks to reinforcements of at least 2 mm thick and the construction depth of 74 mm
- exterior wall thickness of PVC profiles ≥ 2.8mm;
- high thermal insulation thanks to the geometry with 4 chambers
- resistance to rain Class 7A according to EN 1220
- up to 46 mm glass with STV® for thermal insulation (Ug between 0,5 and 1,1 W/m2K) and increased acoustic insulation
- the geometry and the easy to clean outer surface make the maintenance easy
- frame heat transfer coefficient Uf = 1,5 W/m2K
- door heat transfer coefficient Uw between 1,2 and 1,5 W/m2K (according to the glazing)
- Maco lock adapted to requirements (multipoint locking with anti-theft bolts or hooks)
- Hoppe Tokyo handle, Simonswerk hinges 120 Kg
- available in multiple acryl color and wooden decoration versions
- the most flexible solution in terms of available options
Flexible
To take account of different tastes and architectural styles, modern window&door technology can be realised not only in white but also in acrylcolor or with a decor or wood-grain foil.
- Excellent heat insulation – optimal isothermic profile
- Hardware for the French windows and double doors is set flush into the threshold
- All installation types are possible (installation between frames or fitted underneath)
- Threshold compatible with all systems with installation depth of 74 mm or 83 mm
- Good protection against driving rain thanks to a specially shaped outer cover plate as well as multiple sealing levels
- Threshold cover plate covers the mounting screws in the rebate base
- Excellent stability thanks to large steel stiffening elements in the frame and sash
- Easy to clean, thanks to a generously large frame rebate
Design with colour
.jpg)
.jpg)
Simple doors
Double doors
Design doors
Low-E glass
Low-E glass refers to glass with a low-emissivity coating applied on one surface. It is designed to reflect long-wave infrared (heat) back into a building to improve the u-value and energy efficiency of the glazing. Low-E glass is relatively neutral in appearance, so is widely used in both commercial and residential buildings.
Glass 4 Seasons
Glass 4 Seasons with solar control, retains the low-e glass features, but has a higher degree of protection against sunlight from the outside to the inside. It is the right choice when it comes to removing the greenhouse effect from homes due to the natural energy input from the sun and additionally offers additional noise protection. This can reduce the cost of air conditioning in the summer.
Safety glass (laminated/tempered)
It is obtained by joining two or more float glass sheets (clear, reflective or colored) with one or more layers of polyvinyl butyral (PVB) of 0.83 mm thick. If the glass breaks, the pieces remain stuck to the foil, reducing the risk of cutting.
Ornamental glass
It is a glass made of clear or colored glass by passing it to the outlet of the furnace between two profiled rollers. By incorporating a wire mesh in this stage, an ornamental reinforced glass is obtained . To enhance aesthetic effects, ornamental glazing can be sandblast.
Reflective glass
The main feature of the reflective glass is its ability to reflect a large part of solar energy, thus preventing its excessive penetration into buildings. This feature has the consequence of improving the thermal comfort during the summer and reducing the energy expenditure needed for the air conditioning.
